Extra Equipment for Engine Rebuilding Machines

AMC-SCHOU delivers a wide selection of extra equipment for the L-Machine.These expansions make the everyday use of the machine faster and thereby more profitable.

•

  Holder for Cutting Head Tool Setting
  The cutter heads are mounted in the holder for easy tool setting before clamping onto the boring bar.

•

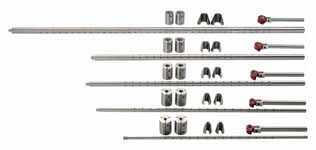

  BORING BARS AVAILABLE
  60 mm dia. x 2900 mm / 2.36 x 114.2 inch incl. bearings, centering rings and bracket bushings.
  Capacity: 62-110 mm / 2.44 x 4.33 inch

  50 mm dia. x 1900 mm / 1.97 x 74.8 inch incl. bearings, centering rings and bracket bushings.
  Capacity: 52-105 mm / 2.05 x 4.13 inch

  40 mm dia. x 1800 mm / 1.57 x 70.87 inch incl. bearings, centering rings and bracket bushings.
  Capacity: 42-75 mm / 1.65 x 2.95 inch

  30 mm dia. x 1600 mm / 1.18 x 62.99 inch incl. bearings, centering rings and bracket bushings.
  Capacity: 32-55 mm / 1.26 x 2.17 inch

  22 mm dia. x 1300 mm / 0.87 x 51.18 inch incl. bearings, centering rings and bracket bushings.
  Capacity: 23-35 mm / 0.91 x 1.38 inch


•

  Cutter Heads
  3 Cutterheads, 1 for 50 mm bar and 2 for 60 mm bar are available with the following capacities:
  50 mm bar: 105-150 mm (4.1"-5.9")
  60 mm bar: 110-155 mm (4.3"-6.1")
  60 mm bar: 155-200 mm (6.1"-7.9")
  The precision ground outside diameter is used as reference point for tool setting.

•

  Off-Set Bracket Bushings
  For boring of camshaft holes in narrow block designs special off-set thin walled bushings are often required.
  Available for all 5 boring bars.

•

  Boring Sag Measuring Device
  By means of this device boring bar sag is easily eliminated. The amount of sag for each boring bar is available in the operating manual.

•

  Radial Facing Attachment
  The radial facing attactment fits on the 30-40-50-60 mm boring bars.
  Max. swing diameter of unit: 180 mm (7.1")
  Feed per revolution: 0.12 mm (0.005")

•

  Internal Measuring Gauges
  The internal measuring gauges which allow measuring of the bore without removal of the boring bar.

•

  The internal gauges are available in 3 sizes:
  25-70 mm / 0.98-2.75 inch
  35-105 mm / 1.38-4.13 inch
  100-210 mm / 3.94-8.27 inch



•

  Tool Grinder
  The tool grinder with its 150 mm grinding and diamond lapping wheel as well as an adjustable jig for 8 mm tools ensures that correct angles are ground on boring tools. Can also be used to grind boring tools for cylinder boring machines as well as con-rod boring and grinding machines.

•

  Cap Grinding
  The AMC-SCHOU cap grinding machine model CRG-100 is the ideal machine for grinding of all kinds of main bearing caps.
