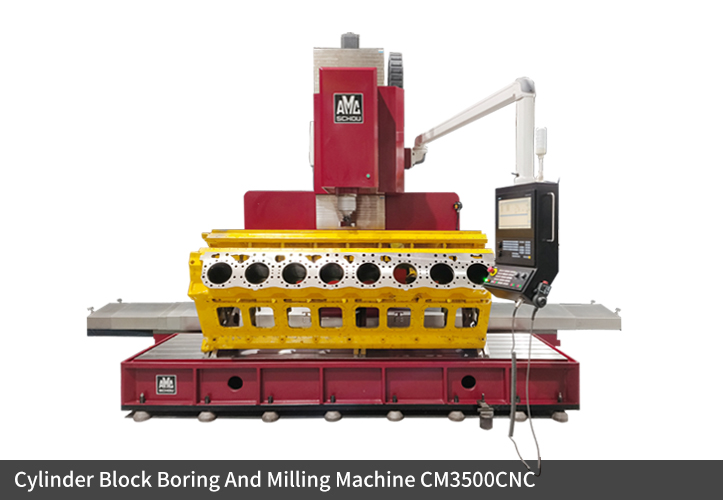

Cylinder Block Boring and Milling Machine
|
TECHNICAL SPECIFICATIONS |
CM-3500 CNC |
CM-4500 CNC |
CM-6500 CNC |
|
|
Boring range: |
mm |
20-500 |
20-500 |
20-500 |
|
Line Boring: |
mm |
50-300 |
50-300 |
50-300 |
|
Travel Horizontal (X-axis): |
mm |
3500 |
4500 |
6500 |
|
Feed rate X: |
mm/min |
0-4000 |
0-4000 |
0-4000 |
|
Travel in/out (Y-axis): |
mm |
450 |
600 |
600 |
|
Feed rate Y: |
mm/min |
0-3000 |
0-3000 |
0-3000 |
|
Travel Vertical (Z-axis): |
mm |
1300 |
1300 |
1300 |
|
Feed rate Z: |
mm/min |
0-3000 |
0-3000 |
0-3000 |
|
Table size: |
mm |
3600x950 |
4600x1200 |
6100x1200 |
|
Spindle center to column: |
mm |
700 |
900 |
900 |
|
Spindle nose to table: |
mm |
500-1800 |
700-2000 |
700-2000 |
|
Max. load on table: |
kg. |
15000 |
25000 |
25000 |
|
Spindle RPM |
rpm |
0-1000 |
0-1000 |
0-1000 |
|
Spindle: |
type |
HSK 100 |
HSK 100 |
HSK 100 |
|
Motors |
||||
|
Spindle motor |
kw |
11 |
11 |
11 |
|
X motor |
kw |
4.4 |
4.4 |
4.4 |
|
Y motor |
kw |
4.4 |
4.4 |
4.4 |
|
Z motor |
kw |
4.4 |
4.4 |
4.4 |
|
Size |
mm |
5900x3300x3600 |
7000x3300x3900 |
9000x3300x3900 |
|
Control system |
Pakage of Siemens Servo motors and Siemens 828D control system; AMC Smart-Block-Reman software easy to use for block reman machining, with standard Siemens milling and boring program for normal machining job. |
|||
