TECHNICAL
SPECIFICATIONS

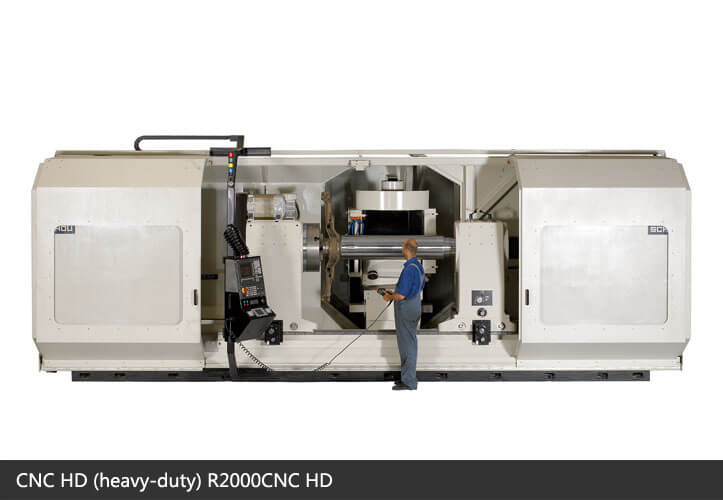

R 2000 CNC HD

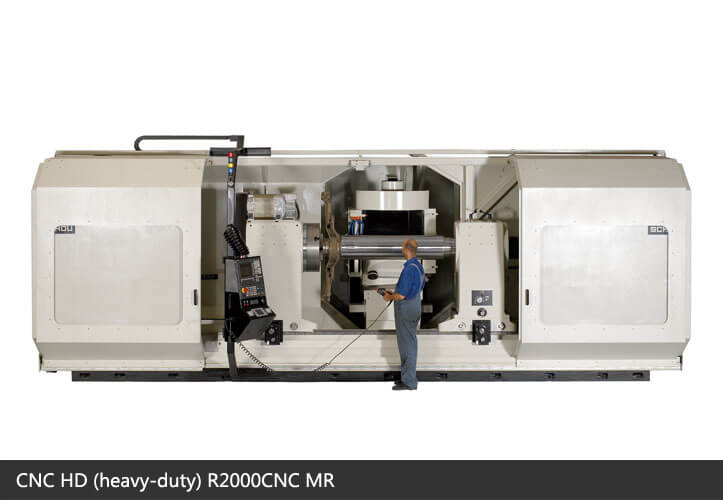

R 2000 CNC MR

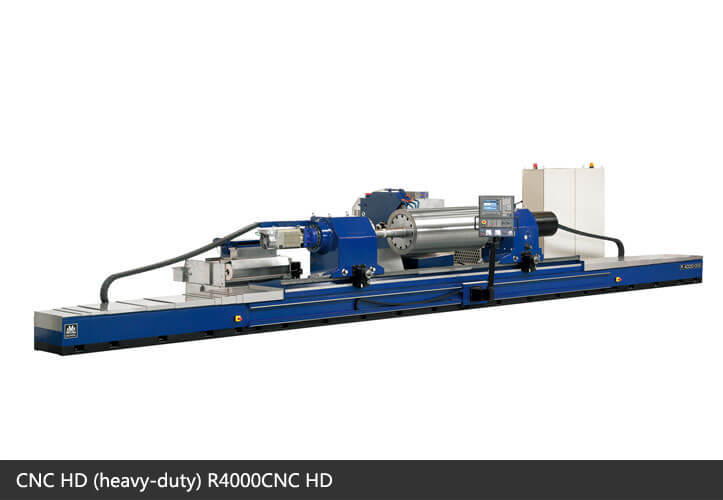

R 4000 CNC HD

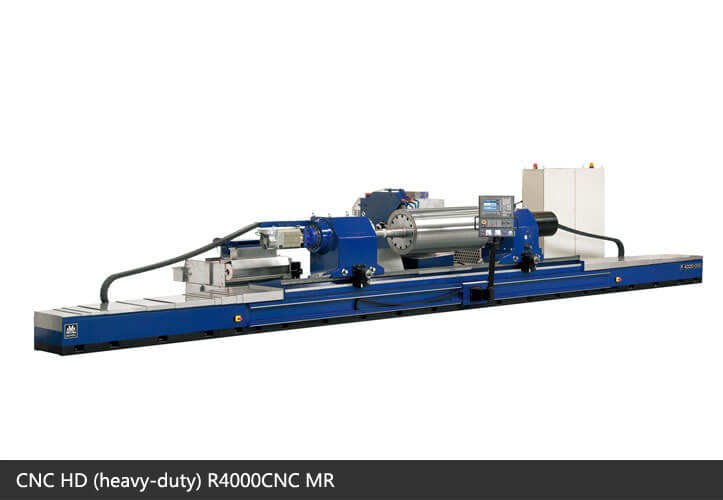

R 4000 CNC MR

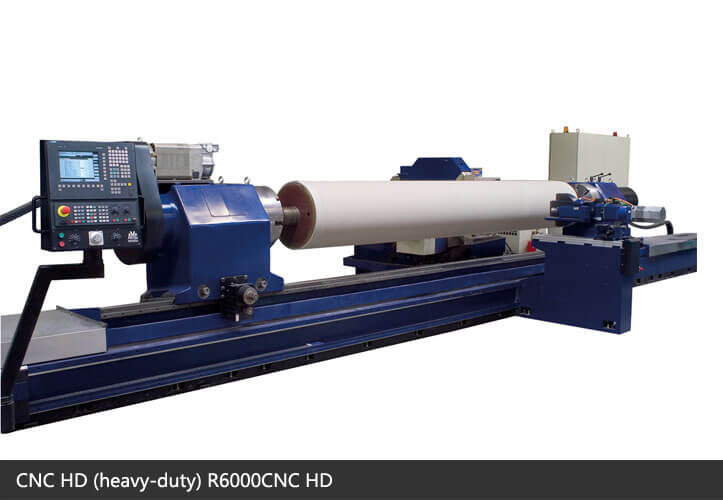

R 6000 CNC HD

R 6000 CNC MR

Max. length between chucks

mm
inch

2000
79

2000
79

4000
157

4000
157

6000
236

6000
236

Max. length between centres

mm
inch

2000
79

2000
79

4000
157

4000
157

6000
236

6000
236

Max. swing over table

mm
inch

1100
43

800
31,50

1100
43

800
31,50

1100
43

800
31,50

Max. weight of workpiece
between chucks

kg
lbs

15000
33069

5000
11000

15000
33069

5000
11000

15000
33069

5000
11000

Table speeds

mm/min
inch/min

1-4000
0.04-157

1-4000
0.04-157

1-4000
0.04-157

1-4000
0.04-157

1-4000
0.04-157

1-4000
0.04-157

Headstock spindle speeds,
variable

rpm

2-140

2-140

2-140

2-140

2-140

2-140

Headstock motor

kW
hp

17
23

17
23

17
23

17
23

17
23

17
23

Grinding wheel motor

kW
hp

37
50

20
27

37
50

20
27

37
50

20
27

Max. grinding wheel diameter

mm
inch

1000
40

1000
40

1000
40

1000
40

1000
40

1000
40

Max. grinding wheel width

mm
inch

100
4

100
4

100
4

100
4

100
4

100
40

Diameter of grinding
wheel bore for hub

mm
inch

305
12

305
12

305
12

305
12

305
12

305
12

Max. tailstock quill

mm
inch

90
3.5

90
3.5

90
3.5

90
3.5

90
3.5

90
3.5

Working space
(working machine)

mm
inch

8700x3500
343x138

10700x3500
421x138

12500x3500
492x138

14500x3500
571x138

16500x3500
650x138

16500x3500
650x138

Net weight of basic machine

kg
lbs

15600
34391

18100
39904

20700
45636

22400
49384

24100
53131

24100
53131

Gross weight of basic machine

kg
lbs

17600
38801

20100
44313

22700
50045

24400
53793

26500
58202

26500
58202

 We are engaged in a continuous process of improving our machines. The details associated with any descriptions, specifications and illustrations shown may thus vary without further notice.



-Travelling table design ensuring stability and accuracy for decades.

-Programmed through the Siemens 840D controller, allowing you to grind various surface contours such as cylindrical, parabolic, cosine curves, crowns, convex and concave, radius, tapers, angles and multiple diameters.

-Siemens servomotors offering variable speed, high accuracy, low vibration and large torque also at low speeds.

-SKF and Deutsche Star high precision ball screws for X- and Z-axis ensuring smooth, accurate and trouble free movements of the antifriction covered table and wheel slide.

-SKF bearings in heavy-duty design in head- and tailstock ensuring smooth and trouble free rotation of even extra heavy work pieces.

-Hydrodynamic grinding wheel spindle ensuring no vibrations and no wear as the spindle is rotating on an oiled film. Runout less than 0.001 mm.

-All main components are made of high quality castings from well-established foundries. These are specially processed to avoid any internal stresses in the material ending up in machines that are entirely free of vibrations.

-Simple, stable design with very few movable components resulting in next to no downtime at all do to mechanical problems. Great savings on maintenance costs, as maintenance is limited to cleaning and lubrication alone.
