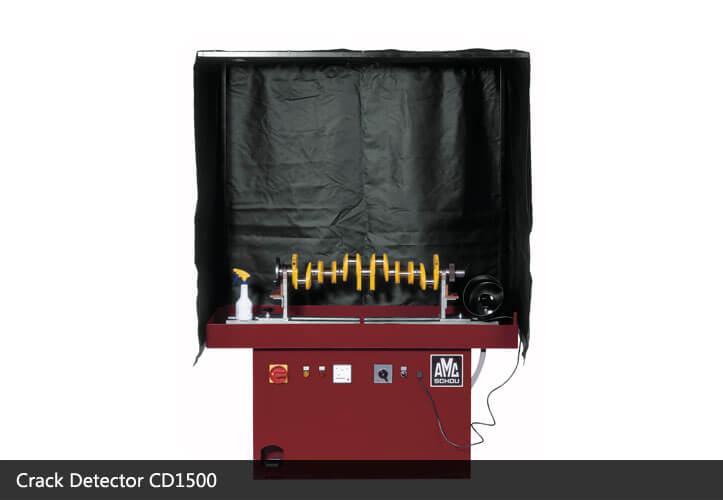

Crack Detector


Crack Detector
  • Crack Detector

TECHNICAL SPECIFICATIONS

CD 1500

Max. inspection of cracks in steel and and iron comp

mm
inch

2740
107.9

Max. output

Amp

3000 at 7V AC

Max. operating current draw

Amp

50 at 380/440 V

Power of UV lamp

 W

125

Length of heavy-duty cables (2 pcs)

mm
inch

1500 + 2900
59 + 106.3

Height table to top of guard

mm
inch

790
31.1

Dimensions

Height of machine

mm
inch

2030
79.9

Total length of machine

mm
inch

1520
59.8

Total width of machine

mm
inch

585
23

Net. weight approx.

kg
lbs

350
770

Shipping weight approx. (wooden box)

kg
lbs

400
880

Shipping volume


ft³

1.44
50.85

We are engaged in a continuous process of improving our machines. The details associated with any descriptions, specifications and illustrations shown may thus vary without further notice.



· Detects cracks in all ferrous material.
· Demagnetises automatically
· Inspection by ultra-violet light
· Easy to operate.
