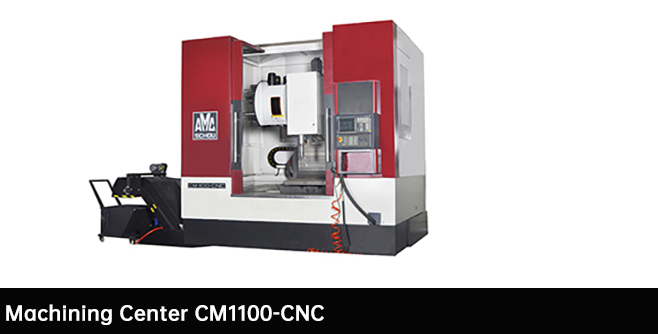

Machining Center
|
TECHNICAL SPECIFICATIONS |
CM-650 CNC |
CM-1100 CNC |
CM-1600 CNC |
CM-2000 CNC |
|
|
Boring range: |
mm |
20-150 |
20-150 |
20-300 |
20-300 |
|
Travel Horizontal (X-axis): |
mm |
650 |
1100 |
1600 |
2000 |
|
Feed rate X: |
mm/min |
0-24000 |
0-24000 |
0-24000 |
0-24000 |
|
Travel in/out (Y-axis): |
mm |
400 |
450 |
600 |
600 |
|
Feed rate Y: |
mm/min |
0-24000 |
0-24000 |
0-24000 |
0-24000 |
|
Travel Vertical (Z-axis): |
mm |
500 |
780 |
720 (980 optional) |
720 (980 optional) |
|
Feed rate Z: |
mm/min |
0-24000 |
0-24000 |
0-24000 |
0-24000 |
|
Table size: |
mm |
800x400 |
1500x500 |
1800*600 |
2200*600 |
|
Spindle center to column: |
mm |
500 |
650 |
650 |
650 |
|
Spindle nose to table: |
mm |
200-700 |
220-1000 |
280-1000 |
280-1000 |
|
Max. load on table: |
kg. |
600 |
1100 |
2500 |
3000 |
|
Spindle RPM |
rpm |
0-8000 |
0-8000 |
0-8000 |
0-8000 |
|
Spindle: |
type |
BT 40 |
BT 40 |
BT 50 |
BT 50 |
|
Motors |
|||||
|
Spindle motor |
kw |
11 |
11 |
11 |
11 |
|
X motor kw |
kw |
3.3 |
3.3 |
3.3 |
3.3 |
|
Y motor kw |
kw |
3.3 |
3.3 |
3.3 |
3.3 |
|
Z motor kw |
kw |
3.3 |
3.3 |
3.3 |
3.3 |
|
Control system |
Pakage of Siemens Servo motors and Siemens 828D control system; |
||||
