Surface Grinding Machines

TECHNICAL SPECIFICATIONS		SG 1400
Max. grinding length	mm inch	1400 55.1
Max. grinding width	mm inch	340 13.4
Max. grinding width in special execution	mm inch	390 15.4
Max. height of workpiece	mm inch	850 33.5
Table surface	mm inch	1400x600 55.1x23.6
Grinding wheel diameter	mm inch	350 13.8
Grinding wheel diameter in special execution	mm inch	400 15.7
Numbers of segments on grinding wheel	pcs	12
Vertical movement of wheelhead	mm inch	240 9.4
Fine feed of wheelhead per graduation	mm inch	0.01 0.0005
Wheelhead traverse speeds, stepless	mm/min inch/min	800-3000 31.5x118.1
Capacity of coolant tank	l gal	95 24.7
Motors
Grinding wheel motor	kW hp	4 5.36
Grinding wheel traverse motor	kW hp	0.75 1
Coolant pump	kW hp	0.16 0.21
Dimensions
Height of machine	mm inch	2260 88.9
Total length of machine	mm inch	2290 90.2
Total width of machine	mm inch	1160 45.7
Working space required	mm inch	3000 x 1560 118.1 x 61.4
Net. weight approx.	kg lbs	1540 3388
Shipping weight approx. (wooden box)	kg lbs	1890 4158
Shipping volume	m³ ft³	7.41 261.65

We are engaged in a continuous process of improving our machines. The details associated with any descriptions, specifications and illustrations shown may thus vary without further notice.

Standard Equipment: tropicalized installation with grinding wheel motor, wheel traverse motor and coolant pump, 350 mm (13.77") grinding wheel head, wheel dresser, arbour for balancing of wheel head, 4 pairs of setting up blocks, central lubrication pump, puller for wheel head, clamps, bolts, spanners and splash guards.

Extra Equipment: 400 mm (15.7") grinding wheel head, milling attachments for both wheel heads, milling inserts, special setting-up fixtures for cylinder heads / V-engine blocks / manifolds, grinding segments for cast iron/aluminium/steel, grinding wheel balancing stand, alignment and depth control device, magnetic chucks, sensitive spirit level for work pieces, manual coolant band filter and more.

· Centrally lubricated
· Easy alignment and depth control (extra equipment)
· Built-in dresser for grinding wheel
· Easy block loading

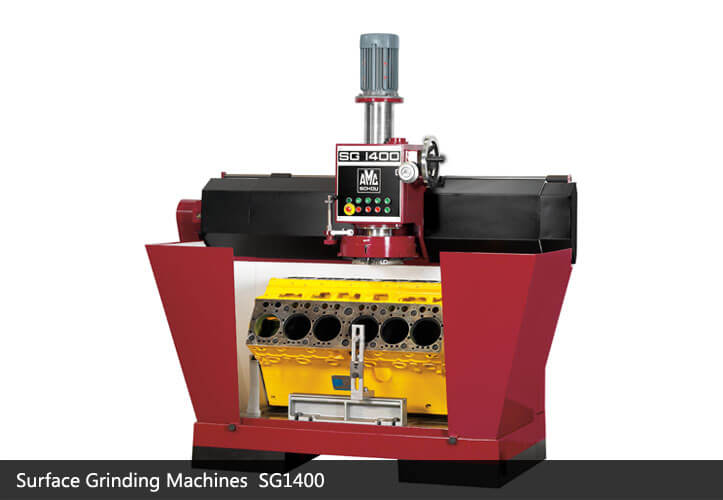

The AMC-SCHOU Model SG 1400 is a wet grinding machine which can be used
by small and medium sized engine reconditioners as well as industrial grinding com-
panies. The space saving design, special guideway design and the telescopic guards
ensure top of the line results for many years.
- The Benefits of Precision.
